Features:
- 9.1-inch 6K Mono LCD
- COB+ Refractive Light Source
- Large Build Volume
- Efficient Heat Dissipation
- Voxeldance Tango Software
- Refreshing Printing Environment
With a 9.1-inch 6K mono LCD screen of 5760x3600 resolution, you can print out highly detailed models at 34 microns XY resolution, with a faster printing speed of up to 70mm/H and a curing time of only 1.5-3s per layer.
The replaceable tempered glass with 9H hardness effectively prevents scratches and damage to the LCD screen and prolongs its lifespan of LCD screen.
The COB+ refractive light source ensures that the exposure of the 405nm wavelength beam across the LCD screen is more even and vertical with consistent accuracy.
Combined with full-grayscale anti-aliasing algorithms, which significantly reduces the "staircase" effect, resulting in finer details and a smoother surface finish.
The dual cooling fan structure dissipates heat faster and more efficiently, thereby extending the service life of MARS 4 MAX.
The Voxeldance Tango Software provides 3 printing modes: static mode and dynamic mode (including smooth mode and high-speed mode). When selecting the dynamic mode, it will adjust the printing speed dynamically according to the cross-sectional size of the printed model, which reduces the influence of release force and improves printing efficiency.
Besides, ELEGOO has self-developed a new open-source GOO slice format, which is compatible with third-party slice software, such as CHITUBOX and Lychee Slicer.

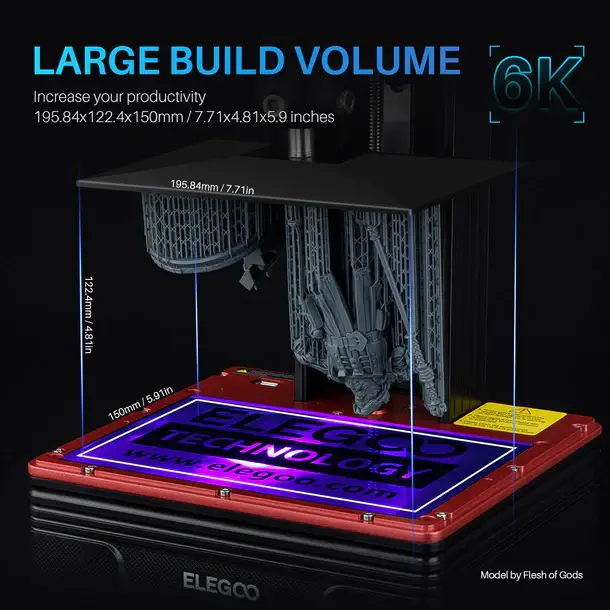

BUILD VOLUME
195.84 x 122.4 x 150 mm³
PRINTING SPEED
30-70 mm/h
LAYER THICKNESS
0.01-0.2 mm
XY RESOLUTION
0.034 mm (5700*3600)
Z-AXIS ACCURACY
0.00125 mm
PRINTING TECHNOLOGY
MSLA
LIGHT SOURCE
COB light source + refraction
LCD SCREEN SIZE
9.1-inch 6K Mono screen
LCD SCREEN PROTECTOR
9H hardness tempered glass
CONNECTION METHOD
USB offline printing
SYSTEM
EL3D-3.0.1
SLICING SOFTWARE
Tango custom slicing software, open source GOO format
OPERATING SCREEN
3.5-inch resistive touch screen
LANGUAGE
Chinese, English
AIR PURIFIER
Plug-in
OTHER FUNCTIONS
N.A.
RESIN
Supports most resins on the market (water-washable, standard, ABS-like, plant-based, etc.)
POWER REQUIREMENTS
100-240V 50/60Hz 24V3A 72W
HEAT DISSIPATION METHOD
Double fans
DIMENSIONS
246 x 230 x 453 mm³
WEIGHT
7.5 kg
Shipping Charges to be arranged after purchase, or email before purchasing: kwilliamson@3dcreationz.co.nz
Shipping Charges approx:
$50 Auckland
$130 North Island outside of Auckland
$220 South Island
Pick up Titirangi/Green Bay available.
